KATO Articulating Torque Arm

KATO Articulating
Torque Arm

Tool Orientation and
Absorb Reaction Force.

KATO Articulating Torque Arm (2KARM-1) is a torque reaction arm, designed to install Tangless or tanged KATO CoilThread inserts using any KATO electric installation tool. Add the optional Air Tool Kit (2KARM-1A), and the KATO Articulating Torque Arm will work seemlessly with the KATO pneumatic installation tools.

The KATO Articulating Arm offers an unprecedented smoothness of Articulating and rotational movements as it absorbs the torque reaction inherent with power installation tools. The KATO Articulating Arm delivers ultra smooth vertical and rotational motion, provides ergonomic support for the operator, and reduces operator fatigue. The fluid movement of the KATO Articulating Arm increases precision and production for a variety of applications.

To see the KATO Articulating Torque Arm in action! Please visit our Video Workshop in KATOpedia.

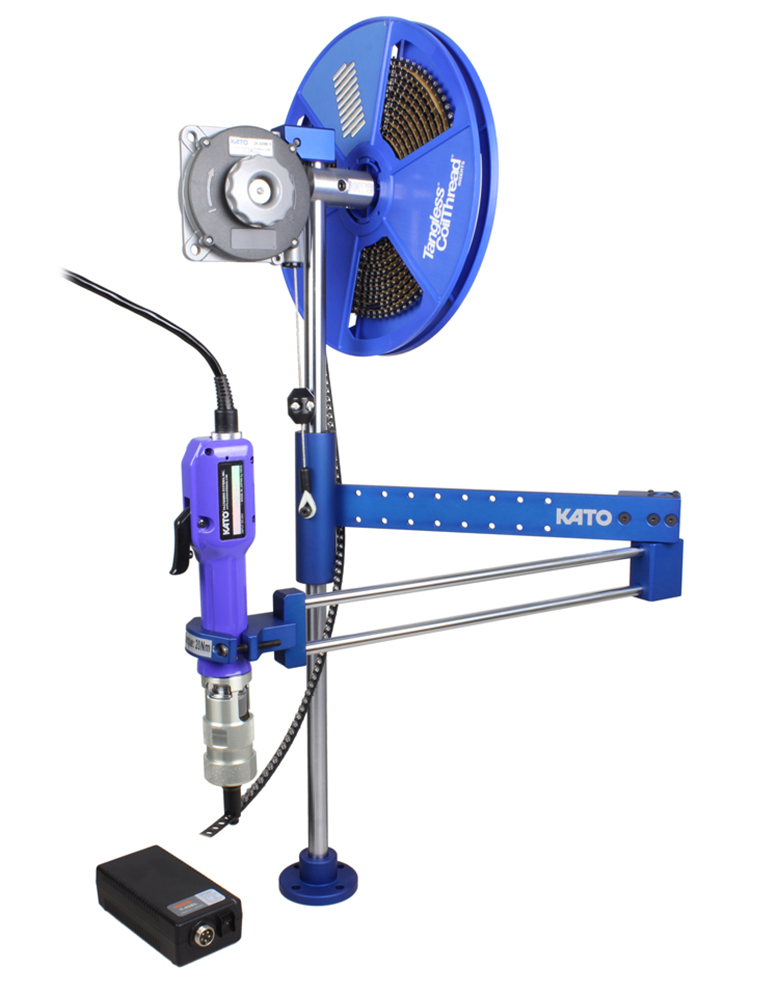

KATO Articulating Torque Arm

The Fastest & Most Productive Semi-Automatic Installation System!


Use the KATO Articulating Arm with KATO strip-feed packaged Tangless inserts, and the KATO Prewinder Electric tool (2KPE series)

Features and Benefits

  • Keeps the installation tool perpendicular to the work piece.
  • Reduces RMI (Repetitive Motion Injury) and CTS (Carpal Tunnel Syndrome) while boosting production.
  • Prevents cross threading and side load, prolonging the life of installation mandrels.
  • Adjustable counter balance provides exceptionally smooth vertical movement.
  • Maneuvers smoothly as the arm absorbs torque reactions from electric and pneumatic tools.
  • Torque capacity of 177 in-lbf (20 Nm).

Part Numbers

KATO Articulating Torque Arm: 2KARM-1

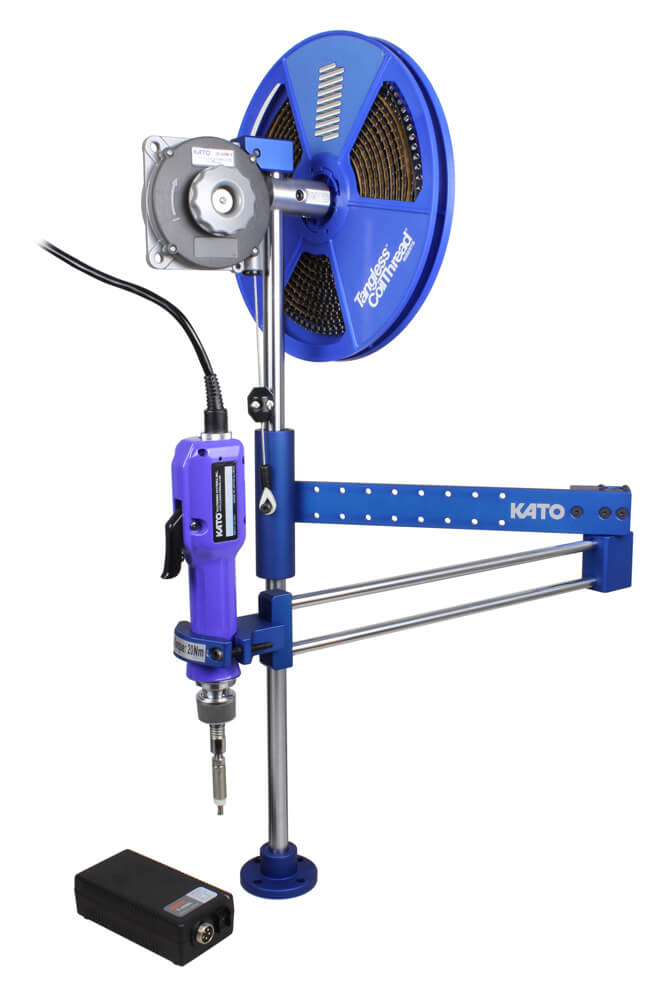

KATO Linear Torque Arm

Strip-Feed Inserts, Electric Driver, and Transformer not included

2KARM-1 Includes:

  • KATO Articulating Arm w/ vertical post and table stand.
  • Adjustable counter balance.
  • Spring loaded strip-feed reel bracket.
  • Vertical tool holder designed to fit any KATO electric or pneumatic tool.

Optional Air Tool Kit: 2KARM-1A

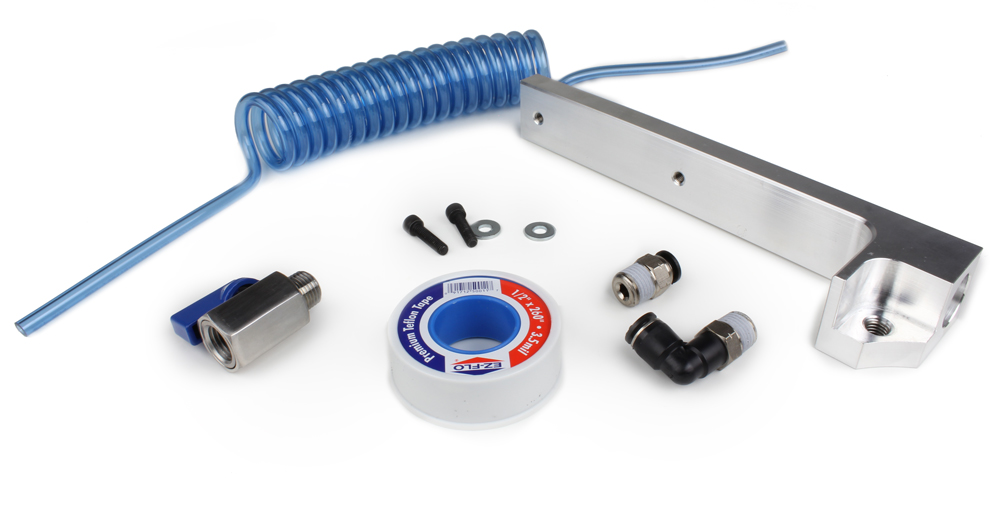

Shown with Optional Air Tool Kits (2KARM-1A)

2KARM-1A Includes:

  • Filter-Regulator-Lubricator mounting bracket (designed to work with the KATO 2KFRL-1).
  • FRL mounting set screws & washers.
  • Stainless steel air shutoff valve (1/4” NPT).
  • Spiral Hose.
  • 1/4” NPT Hose Fitting.
  • 1/4” NPT Hose 90ΒΊ (Elbow) Fitting.
  • Teflon Tape.

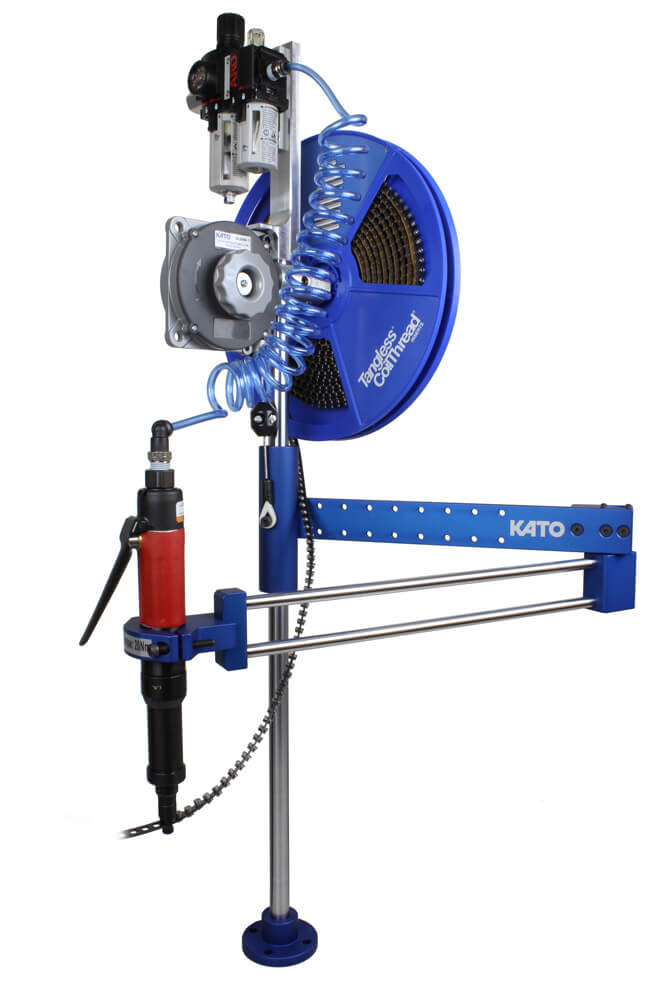

KATO Articulating Torque Arm Shown with Optional Air Tool Kit

KATO Articulating Torque Arm

Strip-Feed Inserts, Air Motor, and Filter-Regulator-Lubricator not included


Technical Specification

KATO Articulating Torque Arm Shipping Weight

2KARM-1: 11 lb. | 2KARM-1A: 2 lb.

Articulating Arm Specifications
