KFS-20 Brushless Electric Driver

KFS-20 Brushless Electric Driver

Designed for Speed and Efficiency

The KFS-20 Brushless Driver is designed for medium to high volume users of KATO Tangless and tanged CoilThread inserts. The KFS-20’s brushless motor requires less maintenance - no carbon brushes to purchase or replace.

The KFS-20 is powerful enough to install inserts up to 1/4” and M6, yet sensitive enough to install inserts as small as 2-56 and M2.5. In addition, the KFS-20 is auto-reversing; once the insert is installed the driver will automatically reverse minimizing overall installation time. The KFS-20 utilizes two interchangeable compression springs to allow operators to precisely adjust the torque to ensure consistent installation and prolong the life of the installation tool.

The KFS-20 brushless driver has two installation options: the KATO Prewinder Electric (KPE) installation tool and the KATO Hex Electric (KHE) installation tool.

To see the KFS-20 in action! Please visit our Video Workshop in KATOpedia.

KATO Torque Arm with Prewinder

The Fastest & Most Productive Semi-Automatic Installation System!

... when used with the KATO Linear Torque Arm, KATO strip-feed packaged Tangless inserts and the Prewinder Electric tool (2KPE series).

Linear Arm Articulating Arm

Features & Benefits

  • Lower cost than competitive drivers with greater capability and ease of use.
  • Works with Tangless and tanged CoilThread inserts.
  • Installs inserts up to 1/4” and M6.
  • Auto-Reversing for reduced installation time.
  • Quick-Disconnect keyless chuck system (KHE series).
  • Portable, clean and quiet (ideal for clean room operation).
  • Adjustable torque, helps prolong the life of installation tools.
  • Highly adjustable torque ensures reliable installation and helps prolong the life of installation tools.
  • 100% compatible with existing KATO Prewinder Electic tools (KPE Series).
  • 100% compatible with existing KATO Hex Electic tools (KHE Series).
  • Brushless motor provides increased durability and less maintenance.

How to Order KATO Prewinder Electric

Complete Tool Requires the Following Parts:

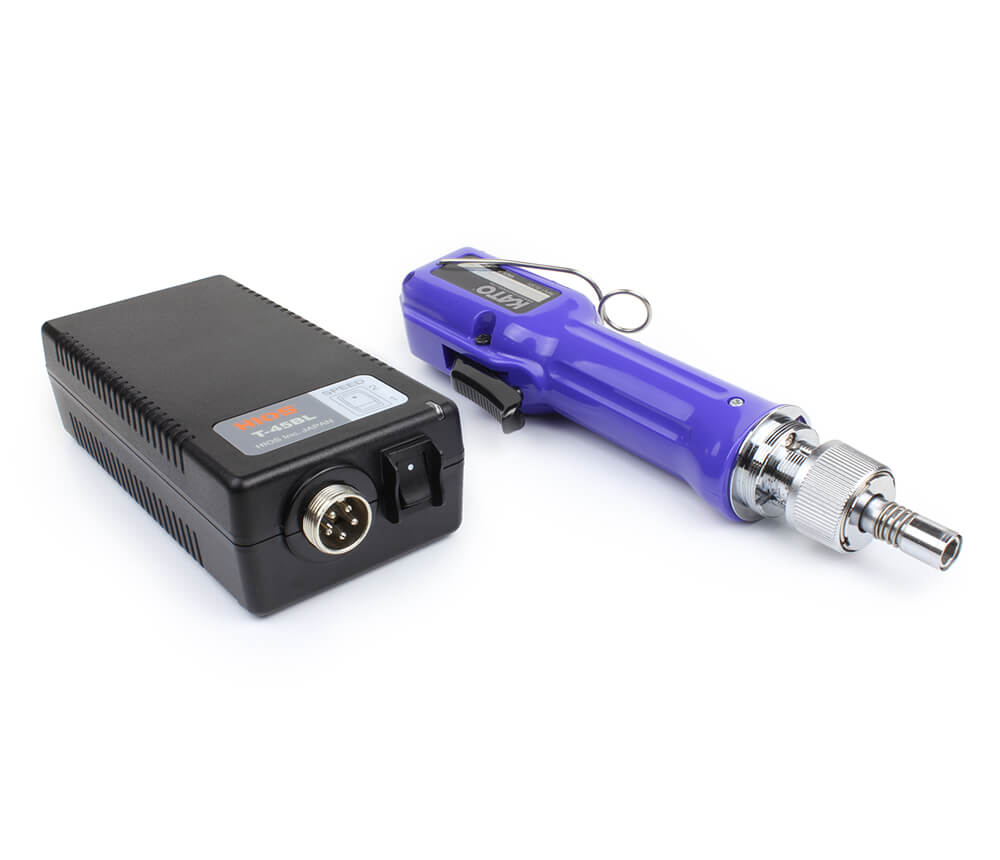

KFS-20 Prewinder Driver
CT5420 with Power Supply

KFS-20 Electric Driver

PN: CT5420

The KFS-20 Electric Driver includes a power supply. No separate part number to remember or purchase. For Europe order the CT5420-EU.

Adapter

Prewinder Adapter

PN: CT5420-PA

The KATO Prewinder Adapter is a bridge that mates the KFS-20 electric driver and the KATO KPE Series front-end assembly together.

Front End Assembly

KATO Prewinder Electric

See Table Below

The KPE Series Front End Assembly comes in a variety of nominal thread sizes up to 1/4” & M6, and is designed to install up 2D nominal length CoilThread inserts.

How to Order KATO Hex Electric

Complete Tool Requires the Following Parts:

KFS-20 Hex Driver
CT5420 with Power Supply

KFS-20 Electric Driver

PN: CT5420

The KFS-20 Electric Driver includes a power supply. No separate part number to remember or purchase. For Europe order the CT5420-EU.

Adapter

KATO Hex Electric

See Table Below

The KHE Mandrel Assembly is designed to install up to 3D nominal length CoilThread Inserts. The slim profile makes it possible to install CoilThread inserts in hard to reach places.

Part Numbers


For fast and accurate part numbers and technical information on specific inserts try out the KATO Product Wizard.

Example of a KATO Hex & Prewinder Electric tool part number:


2 KHE C -    02

1   2    3   4  5   6


1
Tool Type		 2
Tool Style		 3
Thread
Designation		 4
Mandrel		 5
Size Designation		 6
Component / Replacement Part
Blank - For CoilThread (Tanged)
2 - Prefix for CoilThread II Tangless inserts 		KHE - KATO Hex Electric
KPE - KATO Prewinder Electric		 C - Unified Coarse
F - Unified Fine
M - Metric		 (UNF & Metric Only)
F - Free-Running
L - Locking		 Chart Below (Tangless Only)
G - Nylon Guard
H - Adusting Sleeve Housing without Nylon Guard
M - Replacement Mandrel
D - Prewinder Body
M - Mandrel Assembly (Tangless mandrel includes, pawl, pin, and spring fully assembled and ready for use)
S - Spacer Set (includes 3 spacers + 1 thick shim + 3 thin shims, where applicable)
Thread
Size		 Hex Electric Prewinder Electric Brushless
Driver		 Torque
Arms
Tangless Tanged Tangless Tanged
Unified Coarse
2-562KHEC-02KHEC-022KPEC-02KPEC-02CT542032KLRM-1
or
2KARM-1
4-402KHEC-04KHEC-042KPEC-04KPEC-04
6-322KHEC-06KHEC-062KPEC-06KPEC-06
8-322KHEC-2KHEC-22KPEC-2KPEC-2
10-242KHEC-3KHEC-32KPEC-3KPEC-3
12-24---KHEC-1------
1/4-202KHEC-4KHEC-42KPEC-4KPEC-4
Unified Fine
10-322KHEF-F3
2KHEF-L3 		KHEF-32KPEF-3KPEF-3CT542032KLRM-1
or
2KARM-1
1/4-28------2KPEF-4KPEF-4
Metric Coarse
M2.5X.452KHEM-F2.5
2KHEM-L2.5		KHEM-2.52KPEM-2.5KPEM-2.5CT542032KLRM-1
or
2KARM-1
M3X.52KHEM-F3
2KHEM-L3		KHEM-32KPEM-3KPEM-3
M3.5X.6---KHEM-3.5------
M4X.72KHEM-F4
2KHEM-L4		KHEM-42KPEM-4KPEM-4
M5X.82KHEM-F5
2KHEM-L5		KHEM-52KPEM-5KPEM-5
M6X12KHEM-F6
2KHEM-L6		KHEM-62KPEM-6KPEM-6

Please Note:

  1. The Prewinder Electric tool (KPE) is designed to work with 1, 1.5, and 2 diameter inserts, for 2.5 and 3 diameter inserts please contact KATO for availability. KATO strongly recommends using the Prewinder Electric Tool for Fine and Metric thread size.
  2. For Improved Tangless installation UNF & Metric thread sizes use a different installation mandrel for Free-Running and Locking CoilThread inserts, this is indicated by the -F and -L designation in the part number.
  3. Use CT5420-EU for European Model (240V) only.

Tangless (Hex Electric) Replacement Parts

Thread
Size		 Replacement
Pawl		 Replacement
Pawl Kit 1		 Replacement
Mandrel		 Adjusting
Sleeve Housing		 Nylon Guard
Unified Coarse
2-562KIPC-022KIPC-02K2KHEC-02M2KHEC-02H2KHEC-02G
4-402KIPC-042KIPC-04K2KHEC-04M2KHEC-04H2KHEC-04G
6-322KIPC-062KIPC-06K2KHEC-06M2KHEC-06H2KHEC-06G
8-322KIPC-22KIPC-2K2KHEC-2M2KHEC-2H2KHEC-2G
10-242KIPC-32KIPC-3K2KHEC-3M2KHEC-3H2KHEC-3G
12-24---------------
1/4-202KIPC-42KIPC-4K2KHEC-4M2KHEC-4H2KHEC-4G
5/16-182KIPC-52KIPC-5K2KHEC-5M2KHEC-5H2KHEC-5G
3/8-162KIPC-62KIPC-6K2KHEC-6M2KHEC-6H2KHEC-6G
Unified Fine
10-322KIPF-32KIPF-3K2KHEF-F3M
2KHEF-L3M		2KHEF-3H2KHEF-3G
Metric Coarse
M2.5X.452KIPM-2.52KIPM-2.5K2KHEM-F2.5M
2KHEM-L2.5M		2KHEM-2.5H2KHEM-2.5G
M3X.52KIPM-32KIPM-3K2KHEM-F3M
2KHEM-L3M		2KHEM-3H2KHEM-3G
M3.5X.6---------------
M4X.72KIPM-42KIPM-4K2KHEM-F4M
2KHEM-L4M		2KHEM-4H2KHEM-4G
M5X.82KIPM-52KIPM-5K2KHEM-F5M
2KHEM-L5M		2KHEM-5H2KHEM-5G
M6X12KIPM-62KIPM-6K2KHEM-F6M
2KHEM-L6M		2KHEM-6H2KHEM-6G

Please Note:

  1. Replacement Pawl Kit - includes one pawl, two pins, and two springs.

Tangless (Prewinder Electric) Replacement Parts

Thread
Size		 Replacement
Pawl		 Replacement
Pawl Kit1		 Prewinder
Body		 Mandrel
Assembly		 Spacer
Set
Unified Coarse
2-562KIPC-022KIPC-02K2KPEC-02D2KPEC-02M2KPEC-02S
4-402KIPC-042KIPC-04K2KPEC-04D2KPEC-04M2KPEC-04S
6-322KIPC-062KIPC-06K2KPEC-06D2KPEC-06M2KPEC-06S
8-322KIPC-22KIPC-2K2KPEC-2D2KPEC-2M2KPEC-2S
10-242KIPC-32KIPC-3K2KPEC-3D2KPEC-3M2KPEC-3S
1/4-202KIPC-42KIPC-4K2KPEC-4D2KPEC-4M2KPEC-4S
Unified Fine
10-322KIPF-32KIPF-3K2KPEF-3D2KPEF-3M2KPEF-3S
1/4-282KIPF-42KIPF-4K2KPEF-4D2KPEF-4M2KPEF-4S
Metric Coarse
M2.5X.452KIPM-2.52KIPM-2.5K2KPEM-2.5D2KPEM-2.5M2KPEM-2.5S
M3X.52KIPM-32KIPM-3K2KPEM-3D2KPEM-3M2KPEM-3S
M4X.72KIPM-42KIPM-4K2KPEM-4D2KPEM-4M2KPEM-4S
M5X.82KIPM-52KIPM-5K2KPEM-5D2KPEM-5M2KPEM-5S
M6X12KIPM-62KIPM-6K2KPEM-6D2KPEM-6M2KPEM-6S

Please Note:

  1. Replacement Pawl Kit - includes one pawl, two pins, and two springs.

Tangeds (Prewinder Electric) Replacement Parts

Thread
Size		 Prewinder
Body		 Mandrel
Assembly		 Spacer
Set
Unified Coarse
2-56KPEC-02DKPEC-02MKPEC-02S
4-40KPEC-04DKPEC-04MKPEC-04S
6-32KPEC-06DKPEC-06MKPEC-06S
8-32KPEC-2DKPEC-2MKPEC-2S
10-24KPEC-3DKPEC-3MKPEC-3S
1/4-20KPEC-4DKPEC-4MKPEC-4S
Unified Fine
10-32KPEF-3DKPEF-3MKPEF-3S
1/4-28KPEF-4DKPEF-4MKPEF-4S
Metric Coarse
M2.5X.45KPEM-2.5DKPEM-2.5MKPEM-2.5S
M3X.5KPEM-3DKPEM-3MKPEM-3S
M4X.7KPEM-4DKPEM-4MKPEM-4S
M5X.8KPEM-5DKPEM-5MKPEM-5S
M6X1KPEM-6DKPEM-6MKPEM-6S

Specifications

All dimensions for unified size (in.) | All dimensions are are for reference only.

KFS-20 Electric Driver

CT5420 Brushless Electric
Torque
(lbf-in)		 rpm @
30VDC		 rpm @
20VDC		 Tap
Capacity		 Length
A		 Diameter
B		 Diameter
C		 Grip
Diameter		 Weight
(Ref.)		 Chuck
Capacity		 Voltage
0.17-6.90720480M48.5"0.428"1.1"1.3"12.8 oz1/4 Hex"20-30 VDC
Power Transformer
Power Transformer
Model Maximum #
of Drivers		 Control
Box		 Input Output Size Reference Weight
(Ref.)
Length
A		 Height
B		 Width
C
U.S1Built In110 VAC20 VDC / 30 VDC5.7"1.6"2.6"11.5 oz
European1Built In240 VAC20 VDC / 30 VDC5.7"1.6"2.6"11.5 oz

Hex Electric Tool

2KHE (Tangless CoilThread)

Front End Assembly (2KHE)

KHE (Tanged CoilThread)

Front End Assembly (KHE)
Thread
Size		 2KHE - Tangless KHE - Tanged Weight
(lbs)
A-LengthB Dia.C Dia. A-LengthB-Dia.
Unified Coarse
2-562.840.240.373.830.280.05
4-402.950.240.373.620.280.05
6-322.940.380.373.000.310.05
8-322.990.320.372.990.310.05
10-243.000.380.374.060.380.05
12-24------------4.060.380.05
1/4-203.000.370.443.060.450.06
5/16-183.000.700.703.000.560.06
3/8-163.000.700.704.000.560.06
Unified Fine
10-323.110.380.443.610.380.06
Metric Coarse
M2.5X.452.730.240.373.000.260.05
M3X.52.710.240.373.000.250.05
M3.5X62.730.240.372.980.240.05
M4X.73.000.240.372.990.320.06
M5X.83.110.240.374.000.380.06
M6X13.090.440.444.140.440.06
M8X1.253.880.510.513.040.560.22
M10X1.54.110.610.61------0.22
M12X1.754.520.690.69------0.22

KFS-20 Electric Driver (Prewinder Option)

Prewinder Electric
Torque
(lbf-in)		 rpm @
30VDC		 rpm @
20VDC		 Tap
Capacity		 Length
A		 Grip
Diameter (Ref.)		 Weight
(Ref.)		 Chuck
Capacity		 Voltage
0.17-6.90720480M49.5"1.3"16.2 oz1/4 Hex"20-30 VDC

Please Note:

  • CT5420-PA weight: 1.64 oz.

Prewinder Electric Tool

2KPE (Tangless CoilThread)

Front End Assembly (2KPE)

KPE (Tanged CoilThread)

Front End Assembly (KPE)
Thread
Size		 Length
A		 Length
B		 Diameter
C		 Diameter
D		 Weight
(lbs)
Unified Coarse
2-561.440.950.220.380.09
4-401.440.960.250.390.09
6-321.451.100.280.500.09
8-321.440.900.250.390.09
10-241.751.200.370.500.12
1/4-201.451.450.420.620.12
Unified Fine
10-321.430.900.360.500.12
1/4-281.451.450.420.620.12
Metric Coarse
M2.5X.451.450.900.220.390.09
M3X.51.450.910.250.390.09
M4X.71.460.900.320.500.09
M5X.81.571.000.370.500.12
M6X11.451.450.420.620.12

Hex Cross Reference


KATO
Part Number		 Superseded
Part Number
Unified Coarse
2KHEC-022CTSB-02C
2KHEC-02M2CTSB-02CM
2KHEC-042CTSB-04C
2KHEC-04M2CTSB-04CM
2KHEC-062CTSB-06C
2KHEC-06M2CTSB-06CM
2KHEC-22CTSB-2C
2KHEC-2M2CTSB-2CM
2KHEC-32CTSB-3C
2KHEC-3M2CTSB-3CM
2KHEC-42CTSB-4C
2KHEC-4M2CTSB-4CM
Unified Fine
2KHEF-F32CTSB-3F
2KHEF-F3M2CTSB-3FM
2KHEF-L32CTSB-3F
2KHEF-L3M2CTSB-3FM
KATO
Part Number		 Superseded
Part Number
Metric Coarse
2KHEM-F2---
2KHEM-F2.52CTSB-M2.5F
2KHEM-L2.52CTSB-M2.5L
2KHEM-F32CTSB-M3F
2KHEM-L32CTSB-M3L
2KHEM-F42CTSB-M4F
2KHEM-L42CTSB-M4L
2KHEM-F52CTSB-M5F
2KHEM-L52CTSB-M5L
2KHEM-F62CTSB-M6F
2KHEM-L62CTSB-M6L
2KHEM-F82CTSB-M8F
2KHEM-L82CTSB-M8L
2KHEM-F102CTSB-M10F
2KHEM-L102CTSB-M10L
2KHEM-F122CTSB-M12F
2KHEM-L122CTSB-M12L

Discontinued Drivers

Prewinder Driver (Blue)

Electric Driver

(CT5408)

Archive Pages.

Hex Driver (Blue)

Electric Driver

(CT5408)

Archive Pages.

Round Drivers

Electric Driver

(CT5405 & CT5406)

Archive Pages.

Comparison Chart

KFS-30 Cordless Driver
KFS-30
Part No. CT5430		 KFS-25 Brushless Driver
KFS-25
Part No. CT5425		 KFS-20 Brushless Driver
KFS-20
Part No. CT5420
Cordless Driver
Brushless Motor
Power Supply Included
KATO Prewinder Electric
(2KPE Series)
KATO Hex Electric
(2KHE Series)
Designed for Strip-Feed
Utilizes Prewinder Adapter
Insert Size Capability up to 1/4" & M6 6-32 - 1/2" up to 1/4" & M6
High & Low RPM
 850 / 600
1000 (reverse)		 730 / 490 720 / 480
Volume (Qty)

 Medium to High
Strip Feed User		 Low to Medium
Bulk User		 Medium to High
Strip Feed User
Weight

 17.5 oz1 14.5 oz 12.6 oz
Length

 9.5 in.1 9 in. 8.5 in.
Chuck

 Quick-Disconnect
Keyless Chuck		 Quick-Disconnect
Keyless Chuck		 Quick-Disconnect
Keyless Chuck
Learn More

 KFS-30 KFS-25 KFS-20
  1. Including Battery
Feedback

Your feedback is important to us! Receive your complimentary gift.

Take Survey

Contact Us

757.873.8980

757.873.4920

Email us

Products

Website
